VMC650 small vertical machining center

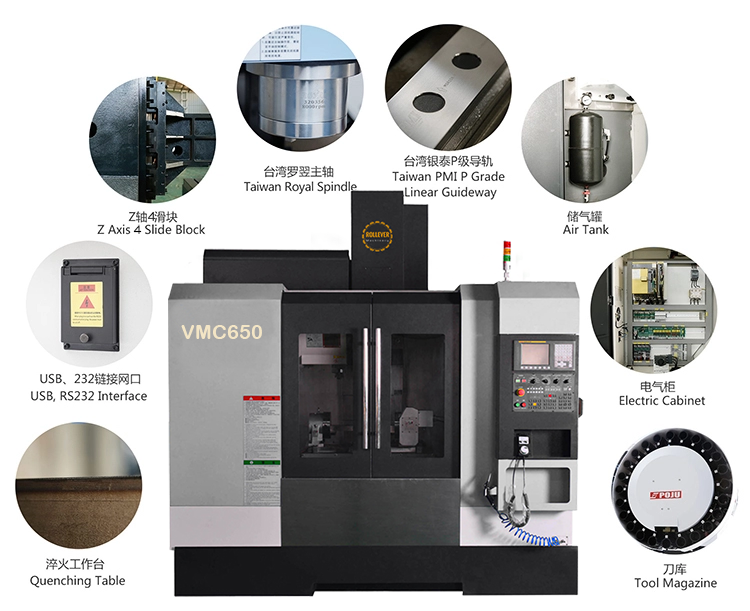

Small vertical machining center VMC650

A.The overall framework is made of high toughness and high grade casting iron. High efficient annealing treatments relieves internal stress to ensure the lasting best rigidity and high precision.

B.The long span Y type column design leads high rigidity and high stability. Assembled with solid and stable large casting bed base can guarantee the workpiece's accuracy.

C. Using C3 class precision ball screw on 3 axes with double nuts and washers pre-loading to pre-eliminate back lash achieves position accuracy and repeatability accuracy with high stability

D.3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.

E.The ball screw connected with AC servo motor directly on 3 axes feed driving system. Running smoothly without back lash. Also having good rigidity and shock absorption performance to improve the e dynamic rigidity of driving system greatly.

F.The high speed precision spindle connected with AC servo motor by synchronous belt. Low noise, low vibration and low heat. The machine can be used for milling, drilling, reaming, boring, reaming and tapping and other machining processing. and tapping and other machining processing.
