Main Feature
1) Table 3 axes with ball screws, high precision
2) Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
3)Mechanical change speeds in head stock, powerful milling
4)Table with an extra supporting column, big load, high accuracy
5) Table with an extra supporting column, big load, high accuracy

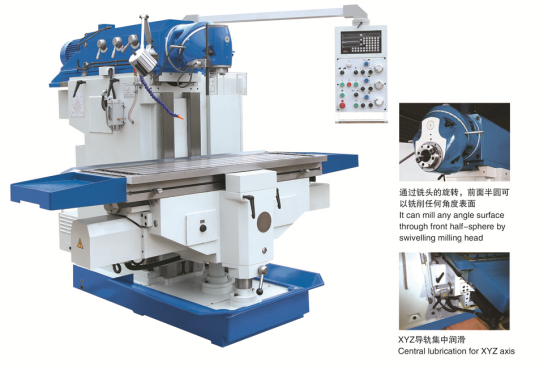

6) It can mill any angle surface through front half-sphere by swivelling milling head.
Mechanical change speeds head stock universal milling head

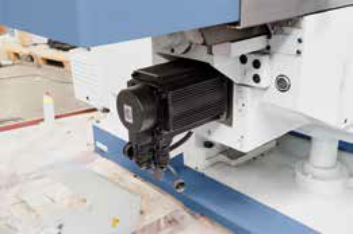

electronic hand wheel+DRO operating box;Servo motor + ball screw

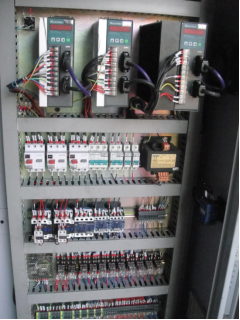

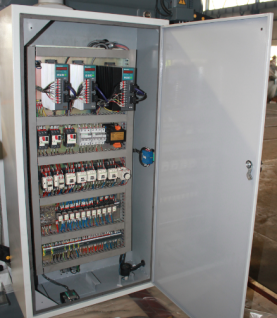

Standard electrical components Schneider electrical components
More models of milling machine please download the catalog below:
Specifications | Unit | X5746 | X5750 | X5750A |
Table size | mm | 460*1235 | 500*1600 | 500*2000 |
T-slots(NO./width/pitch) | mm | 5*18*80 | ||
Table travel (X/Y/Z) | mm | 900*650*450 | 1200*700*500 | 1400*700*500 |
Swivel angle of milling head | - | 360 degree | ||
Spindle taper | - | ISO40 | ISO50 | ISO50 |
Spindle speed range | r.p.m | (27) 30-2050 | ||
Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/6-640 | 10-1000/10-1000/5-500 | |
Table rapid speed | mm/min | 2200/2200/1100 | ||
Distance between spindle nose and table surface | mm | 50-500 | 50-550 | |
Distance from spindle center line to column | mm | 36-686 | 45-745 | |
Main motor power | Kw | 5.5 | 7.5 | 7.5 |
Feed motor | Kw | AC servo motor X/Y:18NM; Z: 27NM | ||
Max load | Kg | 800 | 1800 | |
Overall size | mm | 1835*2362*2090 | 2625*2460*2080 | 2625*2860*2080 |
weight | kg | 3600 | 4200 | 4500 |
