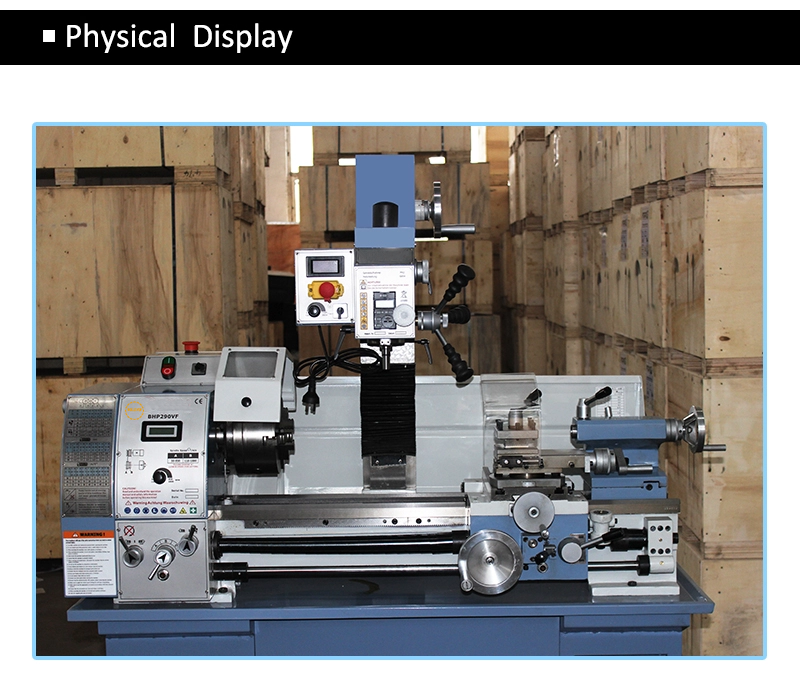

BHP290VF mini combo lathe with dro lathe drill mill 3 in 1
This machine could truning,milling ,drilling round bar workpiece,process outcircle,inner hole,cutting,threading,groove,drill hole,mill keyslot,mill surface,mill end face,reaming,popular in smal workshop,Diy hobby,school training.
More mini combo (hobby) lathe machine information, catalog download please click the link below:
| MODEL | BHP290VF | BHP250V |
| Max distance between center | 700mm | 550/750mm |
| Max swing over bed | 290mm | 250mm |
| Max swing over cross slide | 165mm | 165mm |
| Taper of spindle bore | Mt5 | Mt4 |
| Bed of width | 180mm | 135mm |
| Spindle bore | 38mm | 26mm |
| Range of spindle | 50-1800rpm | 50-2000rpm |
| Slide feed speed | 0.07-0.40mm/r | 0.07-0.40mm/r |
| Inch threads | 8-56TPI (21kinds) | 8-56TPI (21kinds) |
| Metric threads | 0.2-3.5mm(18kinds) | 0.2-3.5mm(18kinds) |
| Top slide travel | 50mm | 50mm |
| Cross slide of travel | 165mm | 115mm |
| Tail stocks quill travel | 80mm | 70mm |
| Taper of tail stocks quill | Mt3 | Mt2 |
| motor | 1.1KW | 750W |
| Max drill capacity | 25mm | 16mm |
| Max end mill capacity | 16mm | 16mm |
| Max face mill capacity | 63mm | 50mm |
| Taper of spindle | Mt3 | Mt2 |
| Max distance spindle to table | 375mm | 210mm |
| Max distance spindle to column | 185mm | 10mm |
| Main motor | 600w | 500w |
| Spindle travel | 50mm | 50mm |
| Spindle speed | 50-2250rpm | 50-2250rpm |
| T-slot | 10mm | 10mm |
| Overall Net /gross weight | 300/320kgs | 200/230kgs |
| Overall packing size | 1400*780*1070mm | 1400*700*880mm |
Ask a quote for the latest price and one of our team members will respond as soon as possible. Fields marked with * are required.
